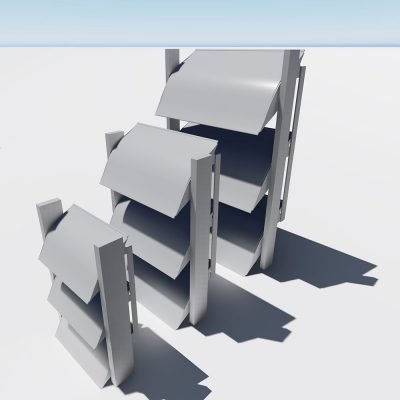

Aluminum adjustable louvers with large blades, model UPO-350
The UPO-350 adjustable louvers are the smallest airfoil louvers in our range. They offer the most advanced options in our range of adjustable louvers, such as perforation on one or both sides of the slats, or the option of manufacturing bicolor slats, with their own design of sinuous walls of maximum resistance. As large-format lattices, they fit perfectly in corporate buildings, government headquarters or major public buildings.
Description for projects
UMBELCO model UPO-350 aluminum slats, with maximum resistance classification PV4 according to UNE 85-226-87 and UNE 85-227-87 standards and manufactured in continuous painted aluminum strip (COIL-COATING process), with high resistance to weathering according to salt spray test (more than 450 h in WEISS SSC 450 chamber). End ends of slats in PA 6 (nylon) of high resistance. Aluminum shafts with a minimum diameter of 10 mm and housed in an extruded aluminum support structure L-6063 with T5 anodized or lacquered treatment.
They are optionally available in any color of the RAL range with interior colors different from the exterior, and with slats in materials such as aluminum, steel, zinc or copper and optionally perforated.
COMPONENTS
The UPO-350 adjustable louvred shutter consists of overlapping tapered louvers, incorporating polyamide 6 (nylon) end caps with maximum impact resistance and aluminum pivot pins. The assembly is mounted on a tubular frame of extruded aluminum L-6063 and T5 treatment and is manually or electrically operated.
VARIANTS
UPO-350 wide blade louvers can be installed with the blades in horizontal or vertical position, with the blades perforated on one or both sides and optionally with bicolor blades. The frames on which the slats pivot can be sliding, hinged or lifting, and there is the possibility of incorporating fixed slat systems with the same external appearance.
MOVABLE LOUVERS : UPO 350 : EXAMPLES
What is the UPO-350 made of?
The UPO-350 blades are aluminum, the frames are aluminum, the synchronization systems are aluminum, the control is cast iron, and the end caps are high-strength nylon and aluminum. All components are 100% recyclable at the end of their useful life.
A steel variant is available, which you can find at this link.
Can UPO-350 be installed with horizontal / vertical blades?
Yes, the UPO-350 can be installed horizontally or vertically.
What drive options are available for this lattice?
In spite of their size, UPO-350 louvers support all standard manual drive types, in addition to motorization options.
Contact us for our recommendations.
What is the maximum length of UPO-350 blades?
The UPO-350 slats can be up to 450 cm long in one piece, both vertically and horizontally.
On what type of frames can I mount this lattice?
UPO-350 are usually installed on closed perimeter frames made of 50x50mm aluminum tubing. Optionally, it can be supplied in other tube sections, or without the part of the frame that runs parallel to the slats.
I want an access area with these adjustable slats, is it possible?
Yes. This lattice can be mounted on movable frames, such as hinged doors, sliding frames, lift-and-slide doors, or even folding systems, although it is important to take into account the dimensions of the slats when they are open.
I have doubts about the anchors, how can I solve it?
Properly fastening a truss is important. Therefore, the best answer is to
contact our technicians
and shortly, you will have a specific answer for your project.
My project does not meet any of the prerequisites, what can I do?
If the maximum length of the slats is not met or you need special fasteners,
send us information about your project
and we will advise you about the specific solutions for your project.
Where can I get details in CAD format?
Contact with us
. Our prescription department will send you the details shortly.
