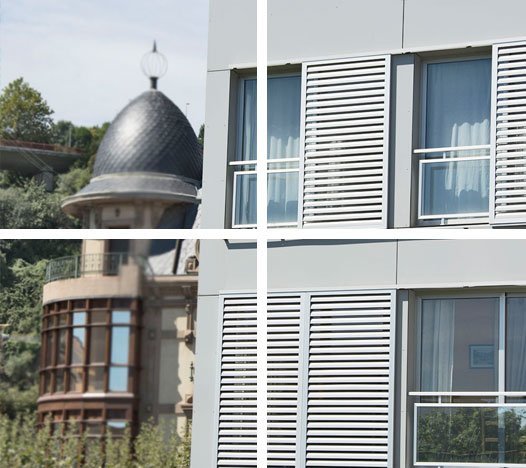

Fixed tubular louvred blinds without inclination, model UPF-80
The lattice system used in the UPF-80 is an extraordinary combination of materials created to offer the market a functional, resistant and durable product in a particularly competitive price range. The strong clipping system, together with the careful design of the slats and the wide range of possibilities offered, make UPF-80 a practical design tool for those projects that seek efficiency above all else.
Description for projects
UMBELCO model UPF-80 fixed louvers with open spacing of 1.5 / 3 cm, manufactured according to ISO 9001 quality standards, following CSR criteria and free of programmed obsolescence. Composed of double reflection slats 80 mm wide and 18 mm thick at 0º inclination, with aluminum strip painted continuously (COIL-COATING process), with high resistance to weathering according to salt spray test (more than 450 h in WEISS SSC 450 chamber) and galvanized steel strips in “U” shape die-cut and galvanized.
They are optionally available lacquered in any color of the RAL range, customized with interior colors different from the exterior or with perforated slats.
COMPONENTS
They consist of a series of fixed aluminum slats, inclined at 0º, which are clipped to their galvanized steel battens (optionally lacquered). It is available with open spacing of 1.5 and 3 cm to adapt to both its use as a ventilation system and as sun protection.
VARIANTS
Slats can be horizontal, vertical, inverted, perforated, cantilevered, mitered, or with different types of corner finials. It is also possible to make them in two colors (one for the inner side and one for the outer side). It can be incorporated into frames, and these can be sliding, hinged, folding or folding lift or booklet.
UPF 80 FIXED LOUVERS
I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Can UPF-80 be installed with horizontal / vertical louvers?
Yes, the UPF-80 can be installed horizontally or vertically.
What slat pitch is available?
UPF-80 is only available with 0º inclination, although it is available with 95mm or 110mm spacing.
What is the maximum length of UPF-80 fixed louvers?
The slats can be made in 600cms in one piece, but the supporting battens of these slats must maintain a maximum cadence of 100cms.
I want more light / more ventilation, how can I get it?
If the slat spacing of 95 or 110 mm is not sufficient, we additionally offer the option of perforating the slats.
What is the maximum spacing between the support battens?
Regardless of whether it is a lattice with vertical or horizontal slats, the maximum distance between supports is 100 cm.
How often do I have to put fixings on this truss?
The joists need to be fastened every 100 cm, both horizontally and vertically, regardless of the arrangement of the slats.
I have doubts about the anchors, how can I solve it?
Properly fastening a truss is important. Therefore, the best answer is to
contact our technicians
and shortly, you will have a specific answer for your project.
My project does not meet any of the prerequisites, what can I do?
If the maximum distance between supports or fixings is not met,
send us information about your project
and we will advise you about the specific solutions for your project.
Where can I get details in CAD format?
Contact with us
. Our prescription department will send you the details shortly.
