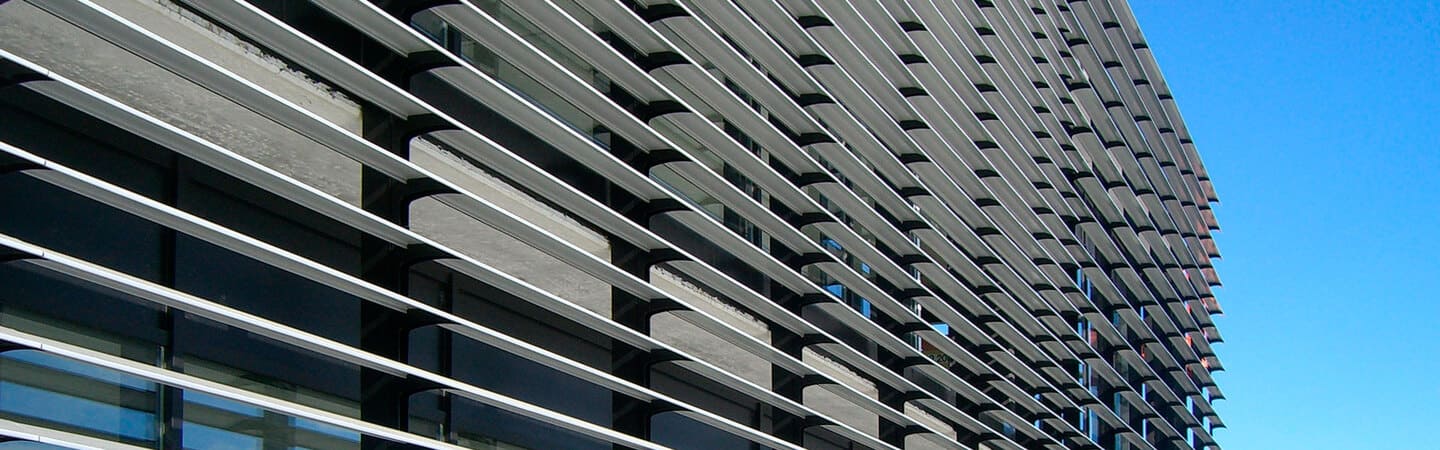

Aluminum fixed louvred blinds with inclination, model UPF-200
The UPF-200 features single-wall aluminum louvers, 200 millimeters wide, which are available in various angles to provide efficient solar protection from unwanted glare. It is possible to perforate the slat to screen solar radiation. They are particularly suitable for libraries, museums, universities, sports centers…
Description for projects
UMBELCO model UPF-200 fixed louvers manufactured according to ISO 9001 quality standards, following CSR criteria and free of programmed obsolescence. Composed of double reflection slats 202 mm wide and 28 mm thick, with continuous painted aluminum strip (COIL-COATING process), with high resistance to weathering according to salt spray test (more than 450 h in WEISS SSC 450 chamber) and tubular extruded aluminum L-6063 battens with T5 treatment, factory stamped for the correct fit in the opening.
They are optionally available lacquered in any color of the RAL range, customized with interior colors different from the exterior or with perforated slats.
COMPONENTS
They consist of a series of inclined fixed aluminum slats and aluminum battens designed to be inclined at angles of 25°, 45°, 60° and 90°. The patented non-return system allows the expansion of the slats without riveting or bolting between the slat and the support.
VARIANTS
Slats can be horizontal, vertical, inverted, perforated, cantilevered, mitered, or with different types of corner finials. The frames can be sliding, hinged, folding or booklet frames.
UPF 200 FIXED LOUVERS
Can UPF-200 be installed with horizontal / vertical louvers?
Yes, the UPF-200 can be installed horizontally or vertically.
What slat pitch is available?
Standard slat inclinations are 25°, 45°, 60° and 90°, but special inclinations are available upon request.
What is the maximum length of UPF-200 fixed louvers?
The slats can be made in 600cms in one piece, but the supporting battens of these slats are the ones that must maintain a maximum cadence of 120cms.
I want more light / more ventilation, how can I get it?
If the slat pitch and spacing between slat axes is not sufficient, for this model we additionally offer the option of perforating the slats.
What is the maximum spacing between the support battens?
Regardless of whether it is a lattice with vertical or horizontal slats, the maximum distance between supports is 120 cm.
How often do I have to put fixings on this truss?
The joists need to be fastened every 120 cm, both horizontally and vertically, regardless of the arrangement of the slats.
I have doubts about the anchors, how can I solve it?
Properly fastening a truss is important. Therefore, the best answer is to
contact our technicians
and shortly, you will have a specific answer for your project.
My project does not meet any of the prerequisites, what can I do?
If the maximum distance between supports or fixings is not met, please send us information about your project and we will advise you about the specific solutions for your project.
Where can I get details in CAD format?
Contact with us
. Our prescription department will send you the details shortly.
