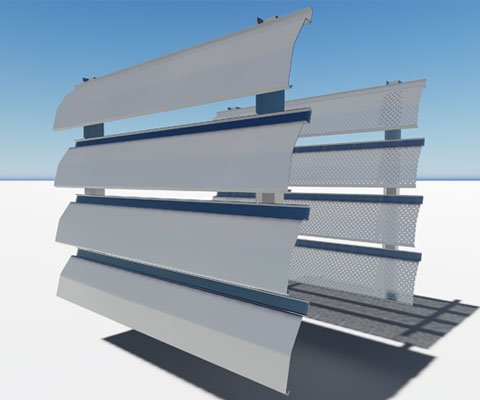

Aluminum fixed louvered louvers with inclination, model UPF-150
UPF-150 provides the perfect balance between our clipping system and the size of the slats. This is the original design from which our UPF-105 and UPF-200 are derived, and upon which the combination of our fixed and movable louvers and our façade cladding was designed. It has a spectacular performance, which stands out for the quality of all its components, and has proven to be one of the most resistant to the passage of time available in the market. It is, in short, the best expression of our know-how in fixed lattices.
Description for projects
UMBELCO model UPF-150 fixed louvers manufactured according to ISO 9001 quality standards, following CSR criteria and free of programmed obsolescence. Composed of double reflection slats 153 mm wide and 23 mm thick, with continuous painted aluminum strip (COIL-COATING process), with high resistance to weathering according to salt spray test (more than 450 h in WEISS SSC 450 chamber) and tubular extruded aluminum strips L-6063 with T5 treatment, factory stamped for the correct fit in the opening.
They are optionally available lacquered in any color of the RAL range, customized with interior colors different from the exterior or with perforated slats.
COMPONENTS
It consists of a series of fixed aluminum slats with various inclinations available, clipped onto aluminum battens designed for angles of 25°, 45°, 60° and 90° (others on request). The patented non-return clipping system allows for the expansion of the slats without riveting the slats or screws between the slat and the support.
VARIANTS
Slats can be horizontal, vertical, inverted, perforated, cantilevered, mitered, or with different types of corner finials. It is also possible to make them in two colors (one for the inner side and one for the outer side). It can be incorporated into frames, and these can be sliding, hinged, hinged, folding lift or booklet frames.
UPF 150 FIXED LOUVERS
Can UPF-150 be installed with horizontal / vertical louvers?
Yes, the UPF-150 can be installed horizontally or vertically.
What slat pitch is available?
Standard slat inclinations are 25°, 45°, 60° and 90°, but special inclinations are available upon request.
What is the maximum length of UPF-150 fixed louvers?
The slats can be made in 600cms in one piece, but the supporting battens of these slats must maintain a maximum cadence of 120cms.
I want more light / more ventilation, how can I get it?
If the slat pitch and slat spacing are not sufficient, we additionally offer the option of perforating the slats.
What is the maximum spacing between the support battens?
Regardless of whether it is a lattice with vertical or horizontal slats, the maximum distance between supports is 120 cm.
How often do I have to put fixings on this truss?
The joists need to be fastened every 120 cm, both horizontally and vertically, regardless of the arrangement of the slats.
I have doubts about the anchors, how can I solve it?
Properly fastening a truss is important. Therefore, the best answer is to
contact our technicians
and shortly, you will have a specific answer for your project.
My project does not meet any of the prerequisites, what can I do?
If the maximum distance between supports or fixings is not met,
send us information about your project
and we will advise you about the specific solutions for your project.
Where can I get details in CAD format?
Contact with us
. Our prescription department will send you the details shortly.
